    [GUIDE] Lets dismantle & mod the keyboard - tear down guide

    After a week of owning a brand new transformer with 500Gb base, what do to - ah-ha, lets pull it apart.
    The reason being I'm in the UK and could only source a 500Gb base with a US keyboard at a reasonable price.

    So, I sourced a good condition UK keyboard (the top of the base unit) from a machine being stripped down via ebay, and got the screwdriver out.

    Both keyboards for comparison - the credit card will come in useful later


    Undo all the screws on the base - 2 are under the rear feet. Then get a credit card and slip it between the two halves of the case and use it to pop the clips holding it together.


    Place screws and bottom piece safely aside.

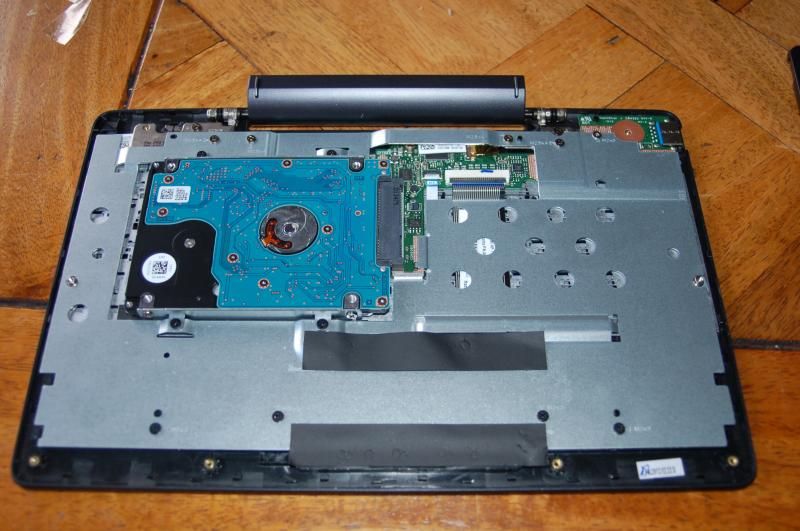

    Inside of base unit (subtract HDD if necessary)


    Remove HDD (4 screws) and all screws on the metal plate - you'll find one hidden under the black tape, and set these aside.


    Now just release the two ribbon cables from the USB board, the clamp is hinged and folds upwards, then remove both screws on the CARE this is attached to the docking port. Undo both hinge screws, one on either side and lift the mechanism complete with USB board and carefully place aside.

    Remove clear plastic sticky piece that sits on the back of the keyboard under the USB board and transplant onto the new unit.


    USB board and screen docking hinge


    The rebuild is a reversal of the stripdown, just be careful you get all the little screws in the right holes, the boards are marked with what goes where and the sizing so isn't too hard.

    It took me about 30 minutes start to finish, and now have a UK spec machine.
    Last edited by Swipe; 09-11-2014 at 03:07 PM. Reason: forum guideline

  2. #2
    Super Moderator
    Supporting Member

    Member #
    72337
    Join Date
    Aug 2014
    Location
    USA
    Tablet
    TF Book T100TA
    Posts
    1,814
    Liked
    417 times
    May I ask what IS the difference between US and UK keyboards? With just a cursory look at your first image, I don't see the difference.
    Rick, loving my T100TA-C1-GR Z3740 64GB Win 10
    BIOS 314. All Windows updates except Bing. All Asus Live Updates. WIFI driver 5.93.99.210
    I get 8-12 hrs use per charge using SLEEP mode. Warning, NEVER calibrate the touchscreen.
    When posting for help, please include Your Model Particulars
    Casters T100 Master Help Guide

  3. #3
    Supporting Member
    Supporting Member

    Member #
    64427
    Join Date
    Jan 2014
    Tablet
    Too lazy to choose
    Posts
    1,249
    Liked
    291 times
    Quote Originally Posted by rickscheller View Post
    May I ask what IS the difference between US and UK keyboards? With just a cursory look at your first image, I don't see the difference.
    The UK keyboard keeps a stiff upper key at all times, no matter the adversity
    Swipe likes this.

  4. #4
    Guide Guru & Forum Administrator
    Supporting Member

    Member #
    12453
    Join Date
    Oct 2011
    Location
    Devon, UK
    Tablet
    Other - Chromebook
    Posts
    14,013
    Liked
    2825 times
    Quote Originally Posted by rickscheller View Post
    May I ask what IS the difference between US and UK keyboards? With just a cursory look at your first image, I don't see the difference.
    Quote Originally Posted by azazel1024 View Post
    The UK keyboard keeps a stiff upper key at all times, no matter the adversity
    The UK keyboard has a sign on the 3 key - the US has a # sign.

    But I notice these things because I'm British & therefore have a broad, expansive view of the world...

    rickscheller likes this.

    PLEASE Search for existing threads before posting a new one. Thanks.

    Your opinion matters. But should you disagree - please try not to be disagreeable

    Forum guide - here ~~ T100 FAQs - here ~~ Cold boot - here

    Adobe Flash Player & Browser Guide here

    Master Help Guide - here ~~ FAQ malware - here ~~ FAQ e-reading - here
    Mobile OS devices personal pantheon...
    ANDROID: Doogee DG310; SGS; Huawei Y300; Motoroloa Xoom 2ME; Razr; Defy Mini; CnM Touchpad II;
    Asus TF101; Lenovo A1; Samsung Tab 2 7.0
    APPLE: iPhone 4s; iPhone 5c; iPhone 6; iPhone 7; iPad 3; iPad Mini 2; iPad Air 2 64gb
    CHROMEBOOK: HP 14-Q010sa Celeron 14 Inch 4GB 16GB Chromebook - White.

  5. #5
    Guide Guru & Forum Administrator
    Supporting Member

    Member #
    12453
    Join Date
    Oct 2011
    Location
    Devon, UK
    Tablet
    Other - Chromebook
    Posts
    14,013
    Liked
    2825 times
    Meanwhile, let me congratulate you reggit on a great guide thread . I have taken the liberty of enhancing the thread title & given you the accolade of moving the thread to our T100 Guides section.


    PLEASE Search for existing threads before posting a new one. Thanks.

    Your opinion matters. But should you disagree - please try not to be disagreeable

    Forum guide - here ~~ T100 FAQs - here ~~ Cold boot - here

    Adobe Flash Player & Browser Guide here

    Master Help Guide - here ~~ FAQ malware - here ~~ FAQ e-reading - here
    Mobile OS devices personal pantheon...
    ANDROID: Doogee DG310; SGS; Huawei Y300; Motoroloa Xoom 2ME; Razr; Defy Mini; CnM Touchpad II;
    Asus TF101; Lenovo A1; Samsung Tab 2 7.0
    APPLE: iPhone 4s; iPhone 5c; iPhone 6; iPhone 7; iPad 3; iPad Mini 2; iPad Air 2 64gb
    CHROMEBOOK: HP 14-Q010sa Celeron 14 Inch 4GB 16GB Chromebook - White.

  6. #6
    Soundwave
    Member #
    72788
    Join Date
    Sep 2014
    Location
    Preston, England
    Tablet
    TF Book T100
    Posts
    8
    Liked
    5 times
    Wow! I didn't expect that accolade!

    For those wondering the difference between the keyboard layouts I've put up a couple of pics.

    US Keyboard


    UK keyboard


    The main differences are the lack of the sign on the US one and @ and " are reversed. My bugbear was if the US on is mapped as UK, there is no \ as it lives next to a smaller shift key. As I use network drives that was causing an issue.
    DKL likes this.

  7. #7
    Super Moderator
    Supporting Member

    Member #
    72337
    Join Date
    Aug 2014
    Location
    USA
    Tablet
    TF Book T100TA
    Posts
    1,814
    Liked
    417 times
    Very clever. Nice write up.
    Rick, loving my T100TA-C1-GR Z3740 64GB Win 10
    BIOS 314. All Windows updates except Bing. All Asus Live Updates. WIFI driver 5.93.99.210
    I get 8-12 hrs use per charge using SLEEP mode. Warning, NEVER calibrate the touchscreen.
    When posting for help, please include Your Model Particulars
    Casters T100 Master Help Guide

  8. #8
    Soundwave
    Member #
    32502
    Join Date
    Apr 2012
    Tablet
    TF700
    Posts
    27
    Liked
    11 times
    Do all keyboard docks have a slot where a HDD can be added? I don't want to tear apart my keyboard dock only to be disappointed. Does anyone know?

  9. #9
    Helping Hero & Super Moderator
    Supporting Member

    Member #
    1745
    Join Date
    Jun 2011
    Location
    Northern Illinois
    Tablet
    TF Book T100TA
    Posts
    1,781
    Liked
    246 times
    I doubt it probably a lot of T100 owners would have already done the up grade already. I have not heard of anyone trying.
    Help shortcuts

    For TF101 http://www.transformerforums.com/for...tml#post177499
    For T100 http://www.transformerforums.com/for...tml#post344339

    My stuff!

    ASUS T100 64GB
    TF101 32 GB + Grandkids toy now
    Nokia 635 win 8.1
    ASUS MB Z97-A with I5 CPU (mine home brew PC)
    HP Desktop (wife's)
    Retired: My week is six Saturdays and one Sunday!

  10. #10
    Super Moderator
    Supporting Member

    Member #
    72337
    Join Date
    Aug 2014
    Location
    USA
    Tablet
    TF Book T100TA
    Posts
    1,814
    Liked
    417 times
    Quote Originally Posted by Sabrina View Post
    Do all keyboard docks have a slot where a HDD can be added? I don't want to tear apart my keyboard dock only to be disappointed. Does anyone know?
    The non-drive keyboard does not have the room. End of story.
